1.说明 Description:
额定温度 Rated temperature:200℃
额定电压 Rated Voltage:600V
绝缘体 Insulation:硅橡胶绝缘(Silicone RubberInsulation)
导体 Conductor: 镀锡或裸铜线2-24AWG(Tinned/ Bare copper2-24AWG)
标准 Standard:UL758、UL1581

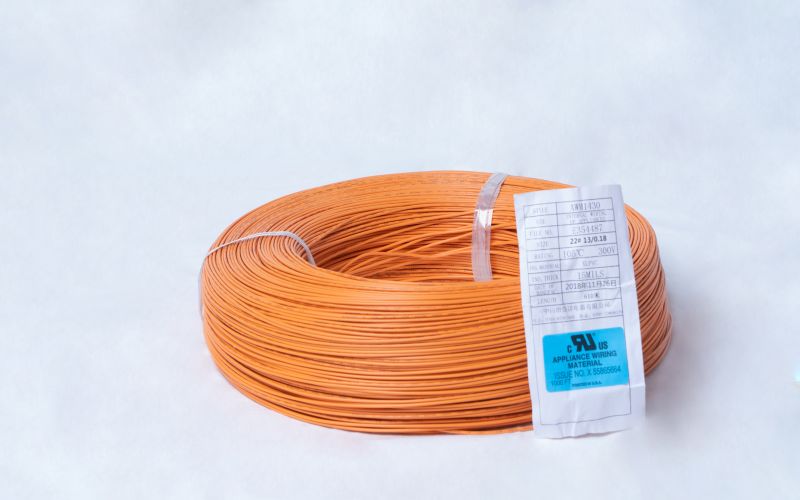

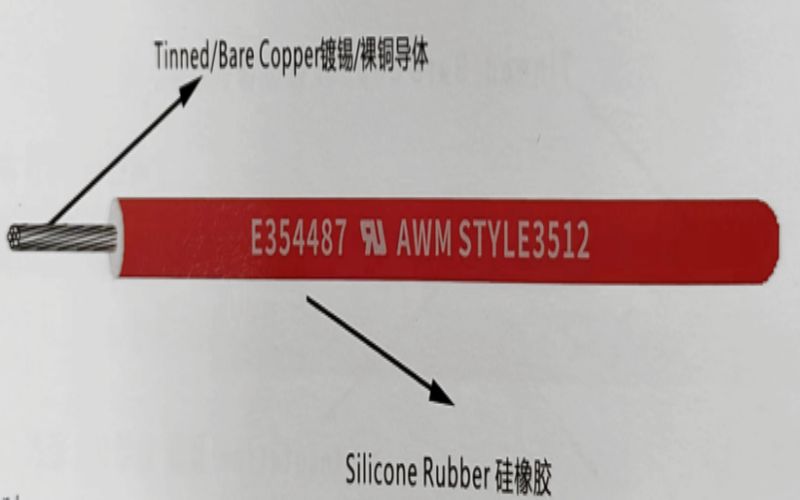

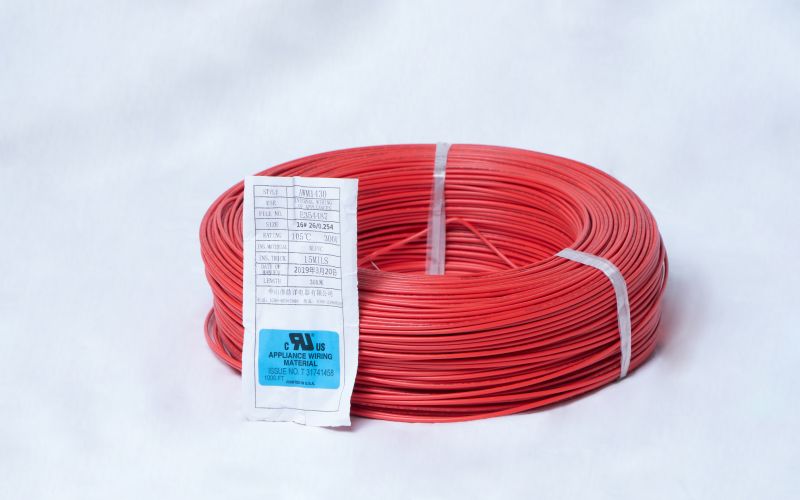

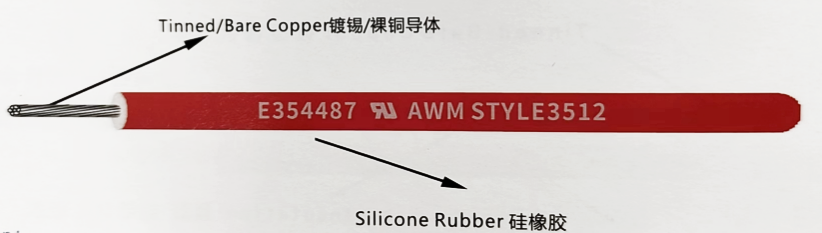

标志 Marking:E354487 9U AWM STYLE 3512 NO.AWG 200 ℃600V SILICONE DINGXIANG
9U AWMIA200 ℃ 600V FT2 -LF-
2.应用 Application:
一般商用电子、电子电器及设备仪器内部连接线、电机变压器和灯具引出线等环境温度不超过200℃场合。
Forgeneral purchase internal wiring of appliancesand electronic equipments lead wires of
motors and lamps where
exposed to temperatures not Exceeding 200 ℃。
3.订货资料 Order Reference
可选颜色:黑、白、红、黄、蓝、棕、黄/绿,特殊颜色可定制;
Colors available: Black 、white 、red 、yellow 、blue 、yellow/green,special colorcan be order;
规格选择:参照表格,特殊规格可定制。Specification available: Reference to specification table
special Specification also can be ordered。
型号 Type | 规格 Mm² | 导体结构 Conductor size (No./mm) ±0.005mm | 导体电阻 Conducto r resistance 20℃(Q /Km) | 导体外径 Conductor Dia. (mm) | 平均绝缘厚度 Insulation thickness (mm) | 完成外径 Overall diameter (mm) | 包装m/roll |
3512 | 2 | 6700/0.08 | 0.890 | 9.46 | 1.52 | 12.5 | 50 |
3512 | 4 | 5000/0.08 | 1.081 | 7.46 | 1.52 | 10.5 | 50 |
3512 | 6 | 3200/0.08 | 1.403 | 5.46 | 1.52 | 8.50 | 100 |
3512 | 8 | 1650/0.08 | 2.230 | 3.80 | 1.35 | 6.50 | 100 |
3512 | 10 | 1050/0.08 | 3.540 | 3.00 | 1.25 | 5.50 | 100 |
3512 | 12 | 680/0.08 | 5.640 | 2.36 | 1.07 | 4.50 | 100 |
3135 | 14 | 400/0.08 | 9.50 | 1.90 | 0.78 | 3.46 | 305 |
3135 | 16 | 252/0.08 | 15.10 | 1.50 | 0.78 | 3.06 | 305 |
3135 | 18 | 168/0.08 | 23.85 | 1.17 | 0.78 | 2.73 | 305 |
3135 | 20 | 100/0.08 | 37.60 | 0.92 | 0.78 | 2.48 | 305 |
