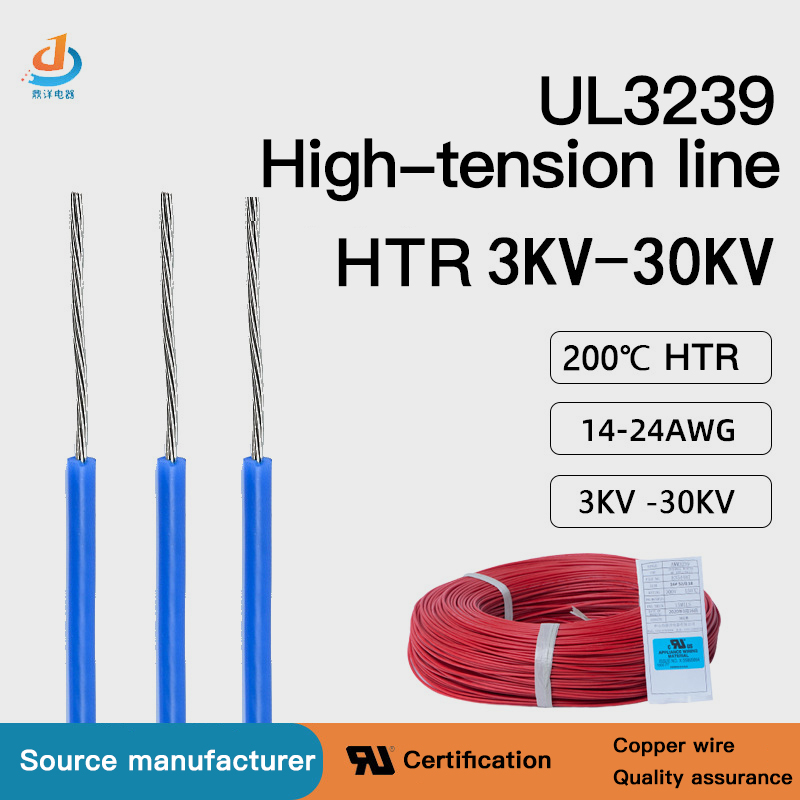

UL3239 silicone high voltage wire suppliers

Insulation:  硅胶绝缘体：硅胶

1.说明 Description:

额定温度 Rated temperature:200℃

额定电压 Rated Voltage:3,  6,10,20,30  KVDC

绝缘体 Insulation:硅橡胶绝缘(Silicone Rubber Insulation)

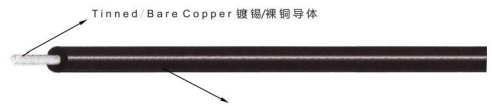

导体 Conductor: 镀锡或裸铜线28~10AWG(Tinned/Bare  copper  28~10AWG)

标准 Standard:   UL758 、UL1581

2.应用 Application:

For general purchase internal wiring of appliancesand electronic equipments lead wires of motors and lamps where exposed to temperatures not Exceeding 200 ℃。

3.订货资料 Order Reference

可选颜色：黑、白、红、黄、蓝、棕、黄/绿，特殊颜色可定制；

Colors available: Black、white、red、yellow、blue、yellow/green,special color can be order;

规格选择：参照表格，特殊规格可定制。

Specification available: Reference to specification table,special Specification also can be ordered。
