Overview of UL1332 teflon high temperature wire
1. UL1332 Teflon high temperature wire is a fluoroplastic high temperature wire. Teflon wire has good high temperature resistance. It uses Teflon as the outer insulation material and is suitable for use in high temperature environments. It is also called UL1332 teflon coated wire.

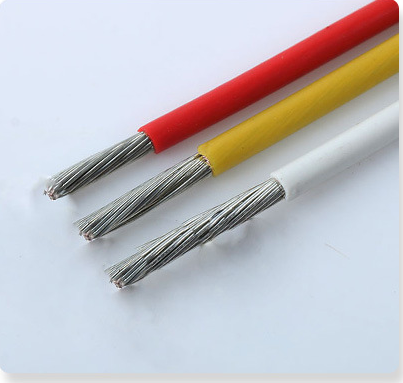

2. Structure of 1332 Teflon high temperature wire
The structure of electronic wire is basically composed of two parts, namely conductor and insulation material. So the structure of 10362 Teflon high temperature wire:
The conductor is: single or multiple strands of tinned copper wire or bare copper wire twisted;
The insulation material is: FEP fluoroplastic insulation;
Temperature range: -100℃～200°C; Rated temperature: 150℃;
Rated voltage: 300V.
3. Characteristics of 1332 Teflon high temperature wire
It has excellent corrosion resistance and can resist corrosion from strong acids, strong alkalis, strong oxidants, etc.
It has excellent electrical insulation performance, large insulation resistance, aging resistance, and long service life.
It has excellent high temperature resistance and can be used in high temperature environment for a long time.
It has excellent waterproof and oil-proof performance, which can prevent the penetration of water and grease.
4. Application scenarios of 1332 Teflon high temperature wire
It is used for internal connection wires of general commercial electronic equipment, household appliances, computers, equipment and instruments, transformers, lighting fixtures, temperature sensors, motors, etc., and the ambient temperature can reach 200℃.
It is suitable for motors with AC rated voltage of 600V and below, wiring of electrical equipment and instruments, temperature compensation wires, etc. in aviation and electronics industries;
It is used for high and low temperature resistant wires and fire-resistant non-combustible wires, internal wiring of lamps and lighting decorations in industries such as electronic appliances and lamps;
It is used in the home appliance industry, such as air conditioners, microwave ovens, electronic disinfection cabinets, electric ovens, electric frying pans, electric heating appliances, etc.

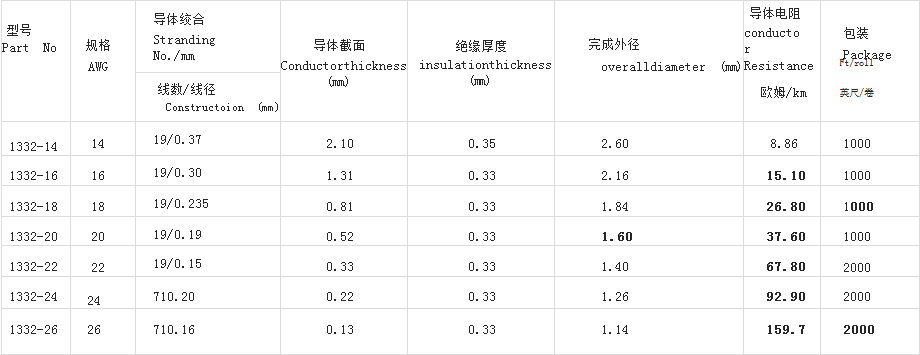

5. UL1332 Teflon high temperature wire wire specifications:
The uses of wires of different specifications may also be different. You can customize the wires according to your needs. The following figure is the wire specification of Dingxiang 1332 teflon coated wire:
